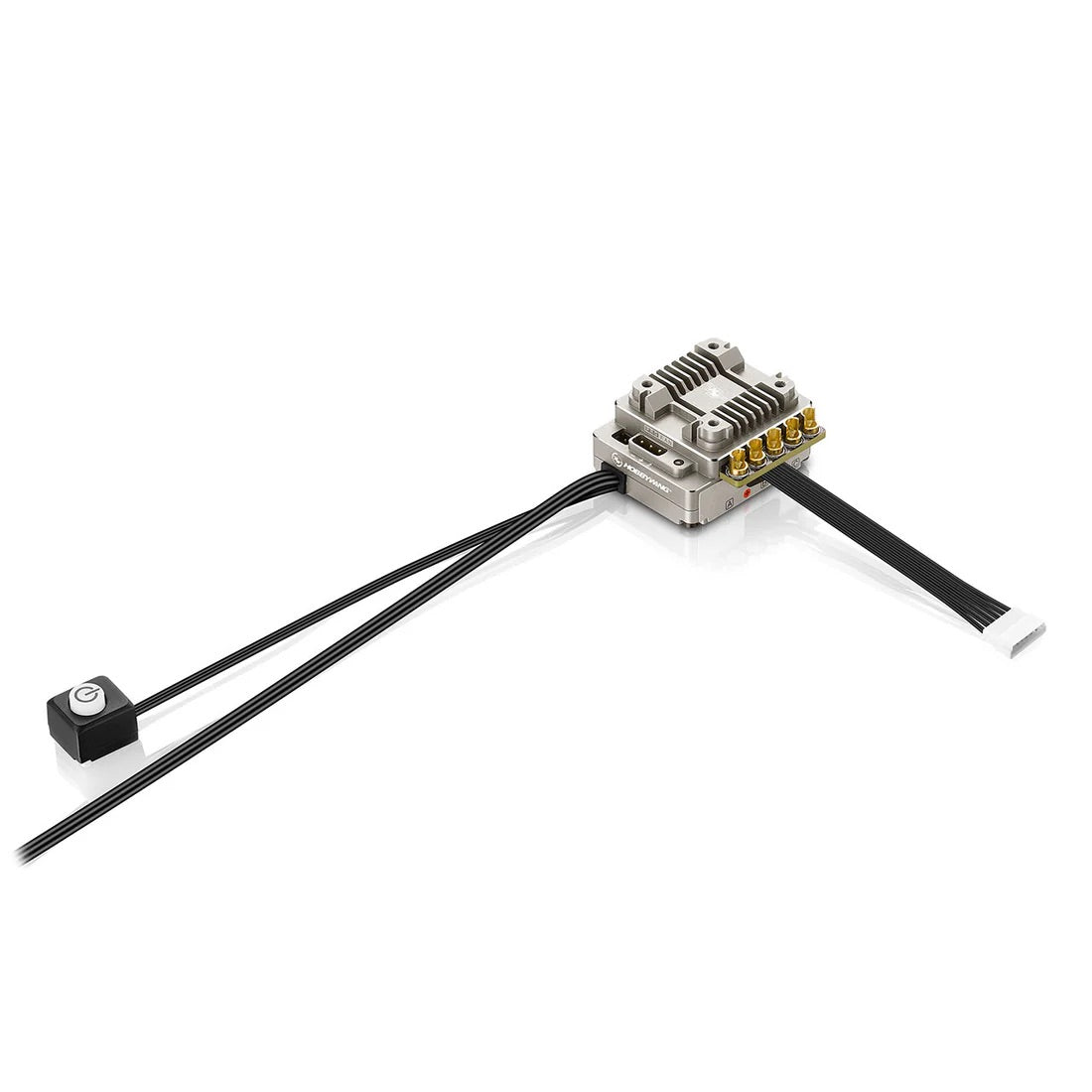

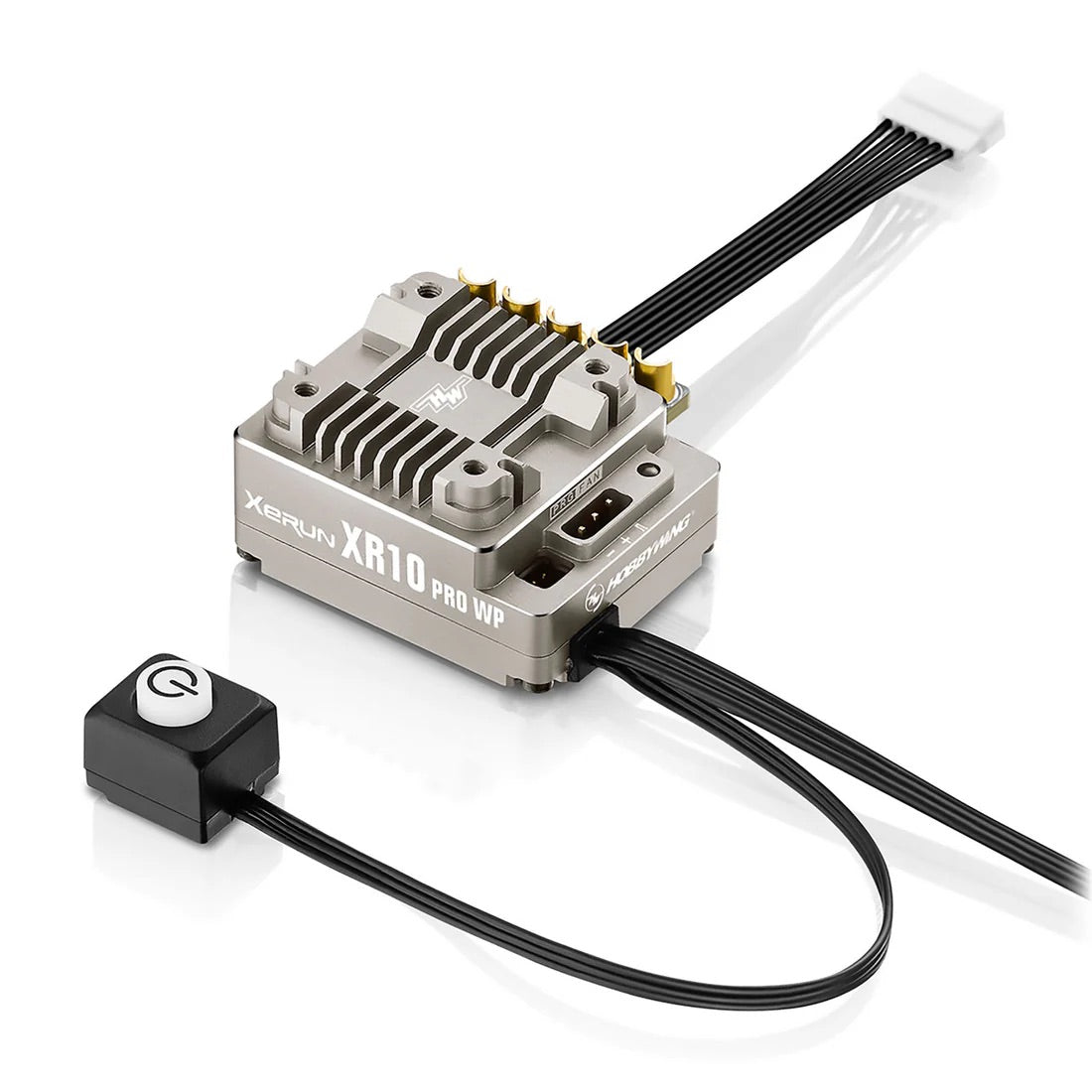

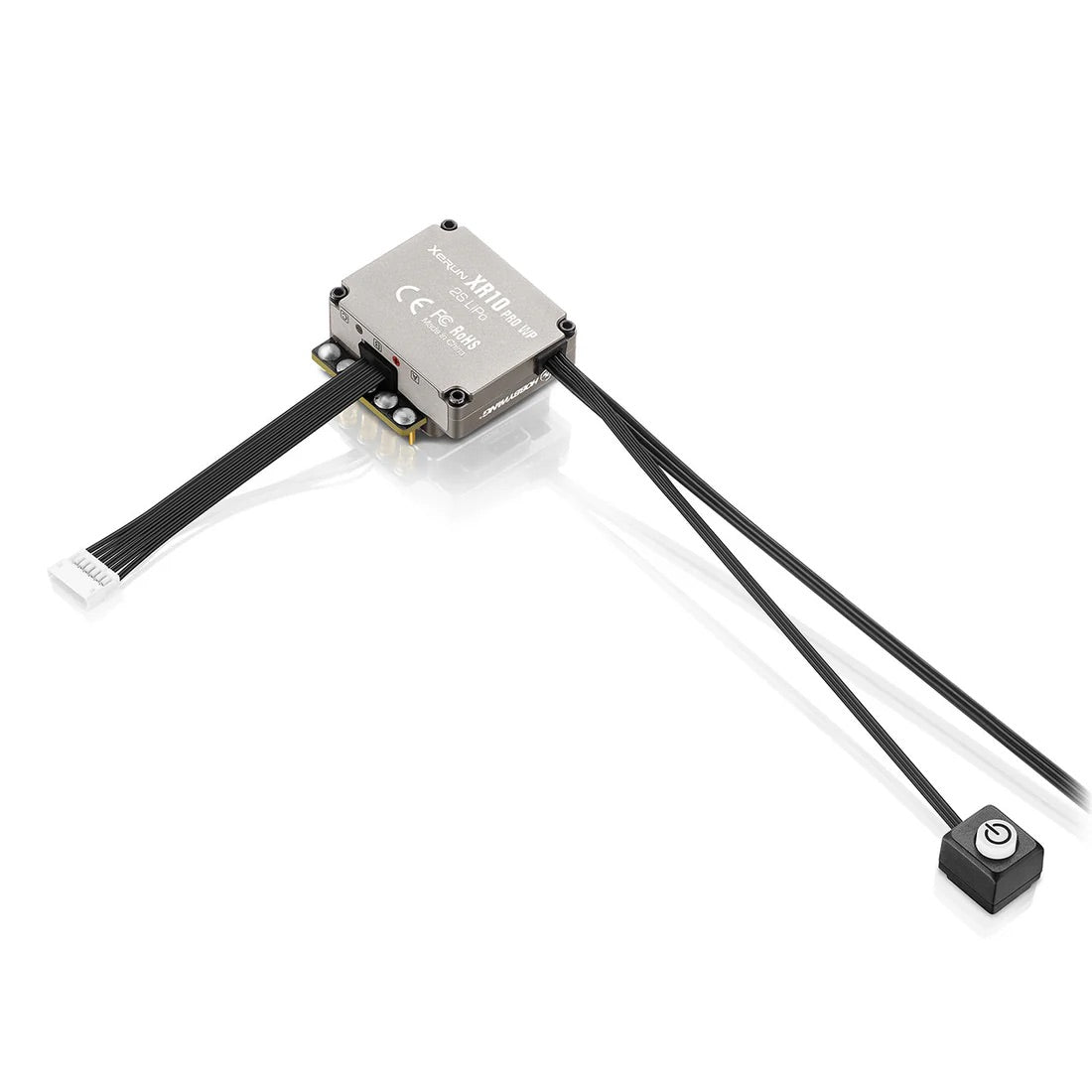

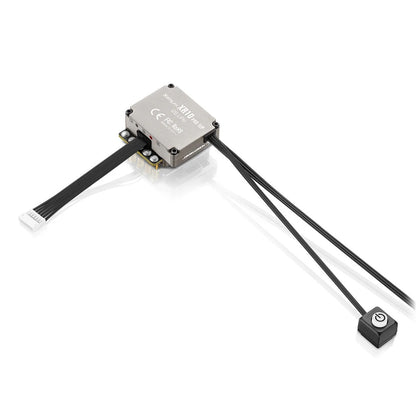

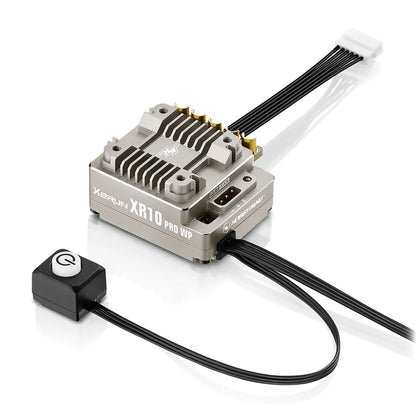

The new XR10 Pro-WP is able to easily handle conditions, from rain, dust, and sand with a proven
waterproof and dust-proof design that is exceeds IP67 industrial standards.
Specifications:
| Type |
| Scale |
1/10th |
| Brushed/Brushless |
BL |
| Sensored/Sensorless |
SD |
| Waterproof |
Waterproof |
|
| Specifications |
| Cont./Peak Current |
160A/1200A |
| Input Voltage |
2S Lipo |
| BEC BEC Output |
Switch Mode 5V-7.4V @5A |
|
| Wires & Connectors |
| Input Wires |
Black-13AWG-200mm*2 |
| Output Wires |
Black-13AWG-200mm*3 |
| Input Connectors |
No |
| Output Connectors |
No |
|
| Fan |
| Size |
25*25*10mm |
| Voltage Range |
5-7.4V |
| Powered by |
BEC |
|
| ESC Programing via |
| SET Button on ESC |
Not Supported |
| LED Program Box |
Not Supported |
| LCD G2 Program Box |
Supported |
| LCD PRO |
Supported |
| OTA Programmer |
Supported |
| Program Port |
Separate Program Port |
|
| Data Recording |
| Extreme value |
Supported |
| Real-time Data |
Supported |
| Historical data (Graph) |
Supported |
|
| Firmware |
| Firmware Upgrade |
Supported |
|
| Size & Weight |
| Size |
37.7*37.2*19.6mm |
| Weight |
95.6g(w/Wires) |
|
| Applications |
| Motors |
Sensored brushless motors / Sensorless brushless motors |
| Vehicles |
1/10th Touring car & Buggy racing, 1/10th Drift,F1,Rally |
| KV Rating/T Count |
Touring Car: ≥4.5T Buggy: ≥5.5T |
|
