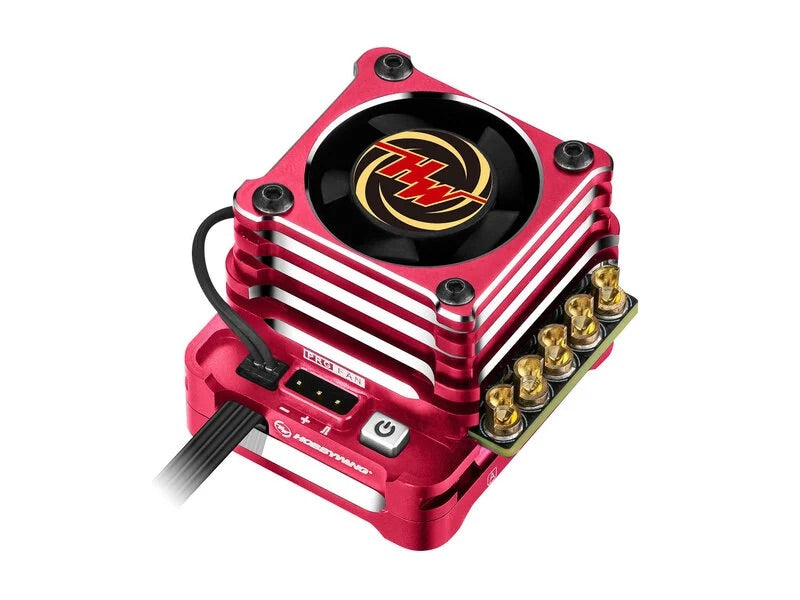

Hobbywing XeRun XD10 Pro "Drift" 100A - RED
Elegantly designed for drift
The Xerun XD10 Pro ESC provides the ideal colors to perfectly match
your drift machines. They are available in black, red and purple.

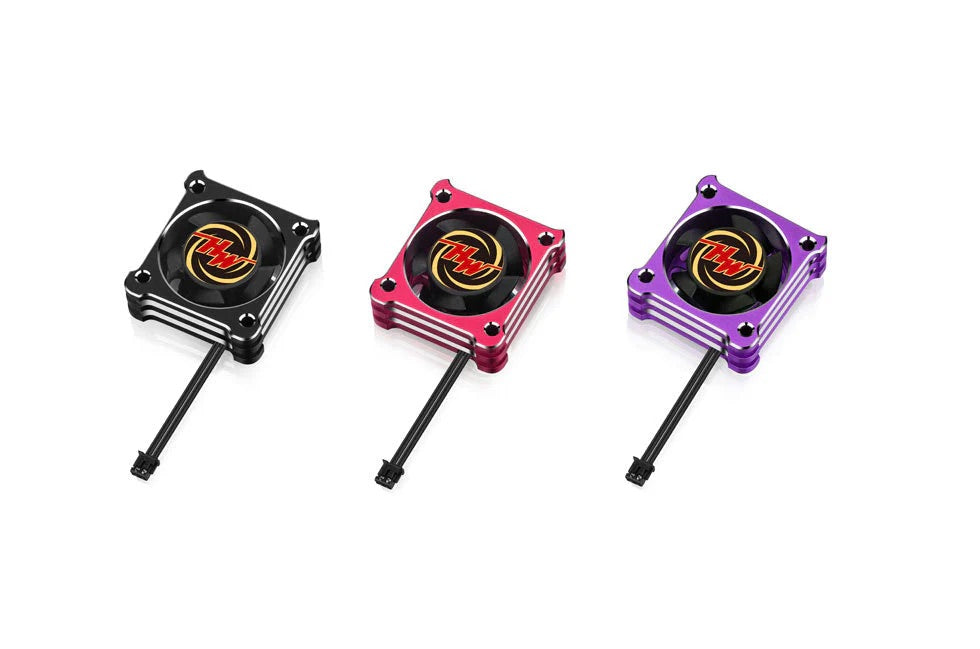

Equipped with a powerful fan
The stylish aluminum fan is powerful and helps to massively cool down the ESC.
Moreover, the texture of the materials have been carefully selected to give you a great overall satisfaction.
Ultra-soft 13AWG silicone wire
The ultra-soft 13AWG silicone wire will be included in the
XD10 Pro ESC. They are ultra-flexible and low in resistance.
Maximum performance is guaranteed.
Reverse Polarity Protected
The Xerun XD10 Pro is reverse polarity protected. In an event when a user makes a mistake
by reversing the polarity, the ESC will not be broken.
Note: The standard capacitor included in the ESC will be damaged when the polarity is
reversed. By selecting the optional non-polarity capacitors (Item number: 30840004,
30840005), it will be able to prevent any sort of damages from happening.
Supports high-voltage BEC
The built-in BEC is able to support both high torque and high voltage
servos and can be adjustable at 5.0-7.4V (adjusted to 0.1V/step).
New communication protocol for quick
setup of parameters, firmware upgrades
The new communication protocol is used to set parameters and significantly
increase the speed of firmware upgrades, and the LCD G2 is twice as fast as
the OTA Programmer speed is 3-4 times faster.
Programmable parameter optimized for drift
The 32-bit M4 processor is equipped with powerful software, features new
programmable parameters and it is optimized for drift applications. The new
parameters such as, initial start-up force adjustment, 48K ultra-high drive frequency,
and 24K ultra-high brake frequency ensures excellent drivability. It is tailored to extract
and maximize performance for high-end drifters.
Note! Use appropriate settings provided by the factory or team drivers. Check
operating temperature in order to maximize your electronics. The wrong settings
may damage the ESC/motor!
Real-time data log makes it easy
to access operating status
After connecting the OTA module box, turn on real-time data
recording function to access the operating status.
Note: Bluetooth transmission distance is most effective within the 5m radius.
Seamless connectivity with OTA
module box and mobile phone
Simple and convenient, parameter settings, firmware upgrading
and other operations can be established using Hobbywing’s OTA
Bluetooth module and your mobile phone via the Hobbywing app.
Specifications:
| Product Name | XeRun XD10 Pro |
| Product Number |
30112614(Black) 30112615(Red) 30112616(Purple) |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
| Wires & Connectors | Wires & Connectors Output Wires Input Connectors Output Connectors |
| ESC Programing via | SET Button on ESC LED Program Box LCD Program Box OTA Programmer Programming Port |
| Fan | Size Voltage Range Powered by |
| Data Recording | Extreme value Real-time Data Historical data (Graph) |
| Firmware | Firmware Upgrade |
| Size & Weight | Size Weight |
| Applications | Applications Vehicles KV Rating/T Count |
| Product Name | XeRun XD10 Pro | |
| Product Number | 30112615(Red) | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/10th BL SD No |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
100A/800A 2S Lipo 5-7.4V，5A |
| Wires & Connectors | Wires & Connectors Output Wires Input Connectors Output Connectors |
Black-13AWG-250mm*2 Black-13AWG-250mm*3 No 3.5mm male plug |
| ESC Programing via | SET Button on ESC LED Program Box LCD Program Box OTA Programmer Programming Port |
Not Supported Not Supported Supported Supported Independent programming port |
| Fan | Size Voltage Range Powered by |
30x30x10mm 5-7.4V Powered by BEC |
| Data Recording | Extreme value Real-time Data Historical data (Graph) |
Supported Supported Supported |
| Firmware | Firmware Upgrade | Supported |
| Size & Weight | Size Weight |
40.7x35.0x32.0mm(w/Fan) 95g (w/wires) |
| Applications | Applications Vehicles KV Rating/T Count |
SL BL Motors SD BL Motors 1/101/10thdrift car ≥8.5T |
